| Specification | Details |
|---|---|
| Engine Model | YC6G270-30(G5AQP) |
| Rated Power/Speed | 199 kW (270 HP) @ 2200 rpm |
| Max Torque/Speed | 1080 N·m @ 1200-1600 rpm |
| Emission Standard | Euro III / China III (GB17691-2005) |
| Application Field | Heavy-duty trucks, medium/heavy buses, construction machinery |
| Key Features | High reliability, low fuel consumption, large torque reserve |
All parts are 100% compatible with Yuchai YC6G270-30(G5AQP) 6-cylinder turbocharged intercooled diesel engine. Designed for high-load characteristics, meeting routine maintenance, overhaul, and emergency repair needs.
Full coverage for core systems: power core (cylinder block, piston-rod), fuel & air (injectors, turbocharger), lubrication & cooling, and electrical auxiliaries. Easy-wear parts (EWP) like rings and gaskets are clearly identified.
Adheres to strict technical standards with precision casting. Key components use high-strength alloys. Includes an 18-month global warranty and 24-hour technical guidance.
Reference the original part number or engine production batch for accurate selection. Bulk orders enjoy preferential pricing and customized support for compatibility confirmation.

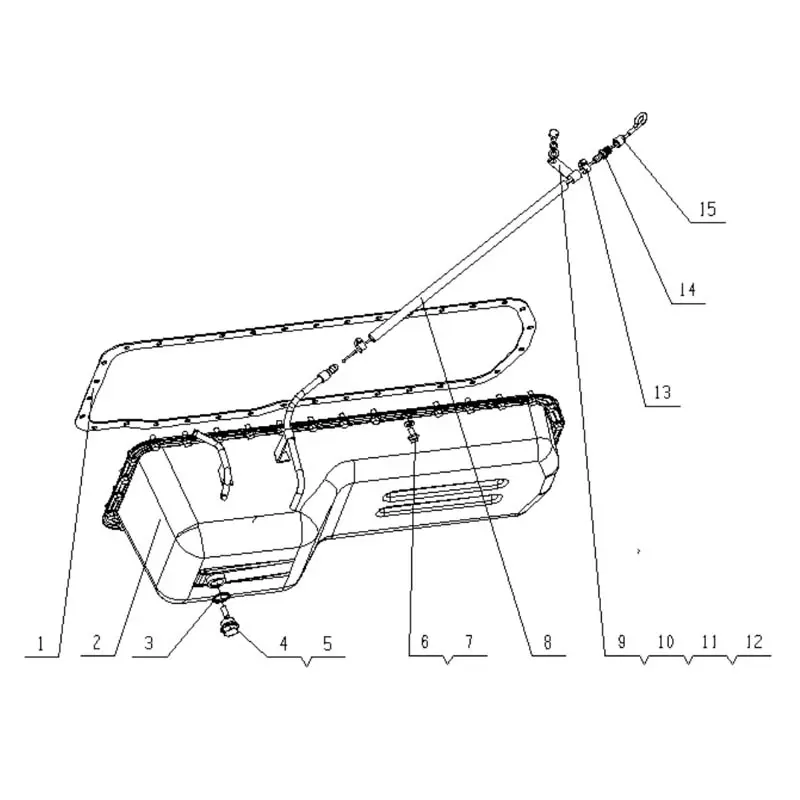

1. G4623-1009000/10 Oil Sump Assembly
| Item | Parts No. | Part Name | Qty. | Remark |
|---|---|---|---|---|
| 1 | G3D00-1009001SF2 | Oil sump gasket | 1 | Easy Wear Part |
| 2 | G4623-1009040B | Oil sump assembly | 1 | |
| 3 | Q/YC149-27 | Compound seal washer 27 | 1 | |
| 4 | 6105Q-1009032A | Oil drain plug magnet | 1 | |
| 5 | 6105Q-1009031C | Oil drain plug | 1 | |
| 6 | 530-1009002 | Washer | 34 | |
| 7 | 57723-S36 | Bolt 3/8-16×0.75 | 34 | |
| 14 | G4623-1009080 | Oil dipstick weldment | 1 |
2. 150-1010000A/04 Oil Strainer
| Item | Parts No. | Part Name | Qty. | Remark |
|---|---|---|---|---|
| 3 | 150-1010010B | Suction pipe weldment | 1 | |
| 6 | 150-1010030 | Screen part | 1 | Easy Wear Part |

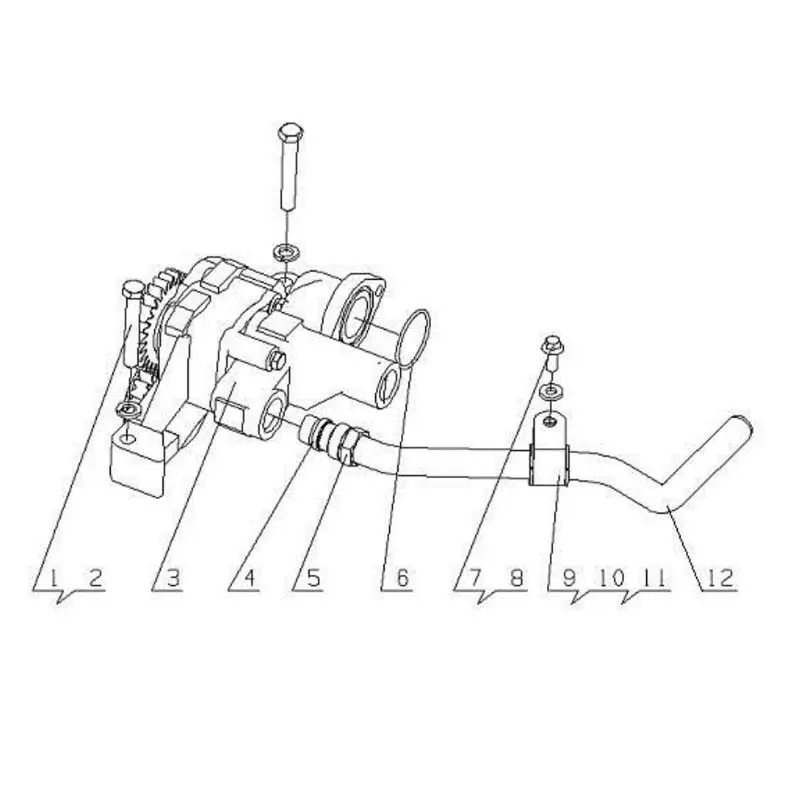

3. G5A00-1010000/05 Oil Pump Assembly
| Item | Parts No. | Part Name | Qty. | Remark |
|---|---|---|---|---|
| 3 | G5A00-1011100 | Oil pump parts | 1 | |
| 6 | 150-1011014 | O-ring | 1 | Easy Wear Part |
| 11 | 150-1011016 | Rubber sleeve | 1 | Easy Wear Part |
4. Oil Filter

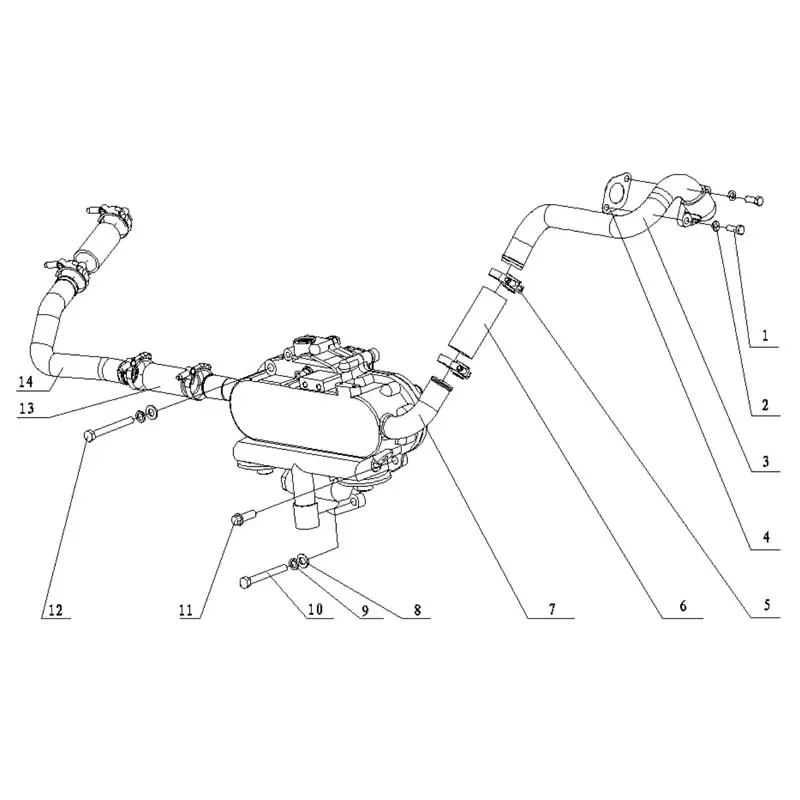

5. Oil Cooler
MOQ: 1 piece
Packaging: Customizable wooden crate or carton
Delivery: 3-20 working days (DHL, FedEx, or Sea Freight)
Payment: L/C, T/T, Western Union
After-Sales: 24-hour technical support, global service network
